12Wheels Hyundai Trago Truck Mounted Crane,12Tons Crane Lorry Trucks

FOB Reference Price:Get Latest Price
US $59,000-74,000 / Unit | 1 Unit/Units SETS (Min. Order)
Supply Ability:
200 Unit/Units per Month sets
Port:
China main port,Shanghai,Tianjin,Longkou,Load Port
Report Suspicious Activity
Overview
Quick Details
Feature:
Truck Crane
Condition:
New
Rated Loading Capacity:
25 T
Rated Lifting Moment:
10 m/kg
Max. Lifting Load:
12 Ton
Max. Lifting Height:
13m
Span:
5.4m
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Hyundai Trago
Model Number:
CHM1310KPQ80V
Certification:
CCC ISO
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
Offical Website:
www.runlitruck.com
Sales Manager:
Ms.Pinky
24Hours:
0086 158 9760 3919
Chassis Optional:
UD Nissan Dongfeng Howo Beiben Shacmen I,SUZU FAW JAC
Max.Loading Capacity of Crane:
10Tons, 12Tons , 14Tons
Packaging & Delivery
Packaging Details
Hyundai Truck Mounted With Crane:
naked package ,
waxed before delivery,
Shipping by RORO or Bulk shipment or by Road by Train,
please directly contact with Ms Pinky. Hotline:0086 15897603919
Delivery Time
10 days after Sign Contract

12Wheels Hyundai Trago Truck Mounted Crane,12Tons Crane Lorry Trucks  Ms.Pinky 0086 15897603919:

Product Description

 We can Provide you the following Truck Mounted Crane:

SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC I,SUZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl

 1.Factory direct sale

2.Specialized in Trucks 10 years

3.a competitive price.

4.with CCC,ISO9001,SGS,ASME

5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,I,SUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .

6.Engine min horse power is 120HP~ 240HP~380HP

7.the tank volume is 3000L~12000-18000L~20000L- 35000L - More Than 35000L Diesel Trailer.

 8.the tank produce as you requiry;



Specification

Specification of 12Wheels Hyundai Trago Truck Mounted Crane,12Tons Crane Lorry Trucks  :

Name

CHM1310KPQ80V

Truck Mounted Crane

Brand

Hyundai

Total Weight(Kg)

31000

Outside dimension(mm)

11995×2500×3830

Loading Weight(Kg)

17320,17255

Cargo size(mm)

9400×2340×800

Kerb Weight(Kg)

13550

wheelbase(mm)

1990+4410+1350,

1990+4710+1350

Axle Number

4

Tire Number

12

Chassis model

CHM1310KPQ80V

Tire specs

295/80R22.5,

315/80R22.5 16PR,

12.00R20 16PR,

11.00R20

Engine

Manufactuere

displacement(ml)

Power(Kw)

D6CF38E5

D6CF41E5

D6CF44E5

Hydundai

12742

12742

12742

279

302

324



12Tons Crane Specs:



Model of crane



Max. Lifting capacity

12000 Kg

Max. Lifting height

13 m

Max.Lifting Moment

10 m/kg

working radius

30 T.m

Recommend Power

32 Kw

Max. oil flow of hydraulic system

55 L/min

Max.pressure of hydraulic system

30 Mpa

oil tank capacity

160 L

crane weight

4130 kg

installation space

1400 Mm

rotation angle

360°,all rotation.

Detailed Images

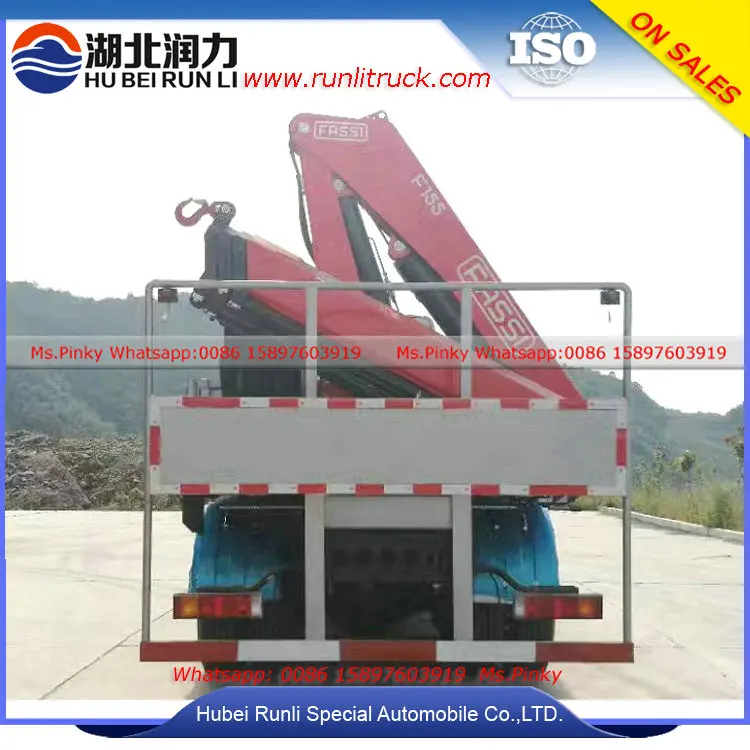

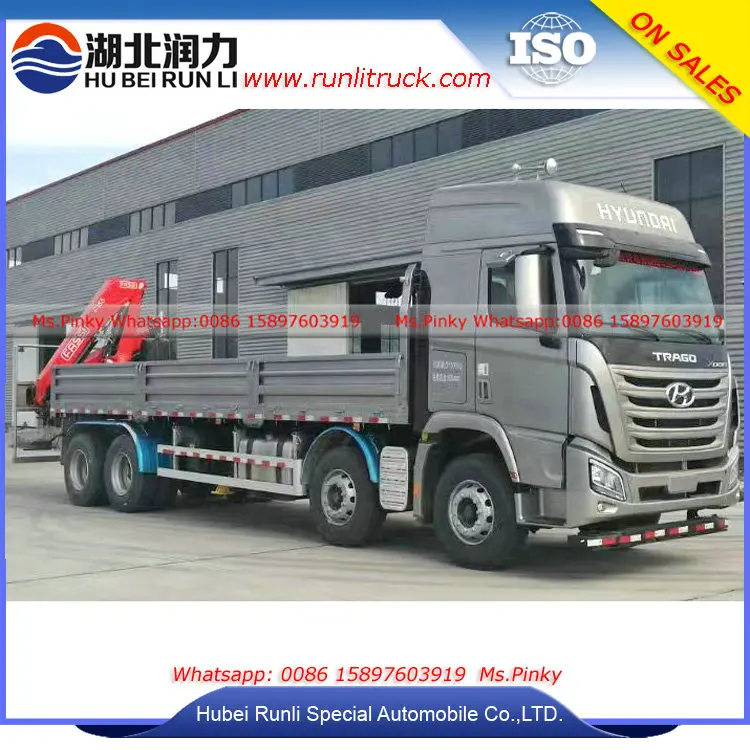

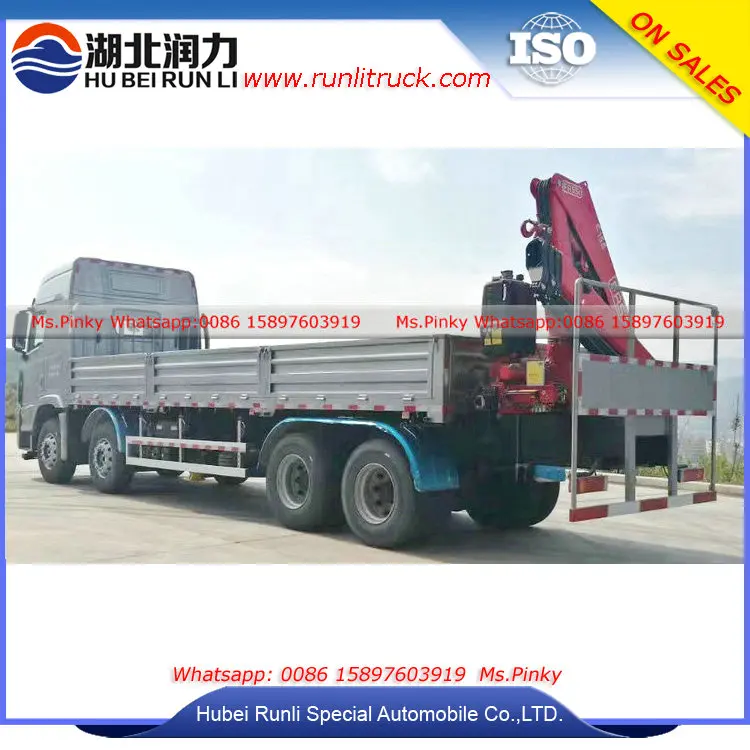

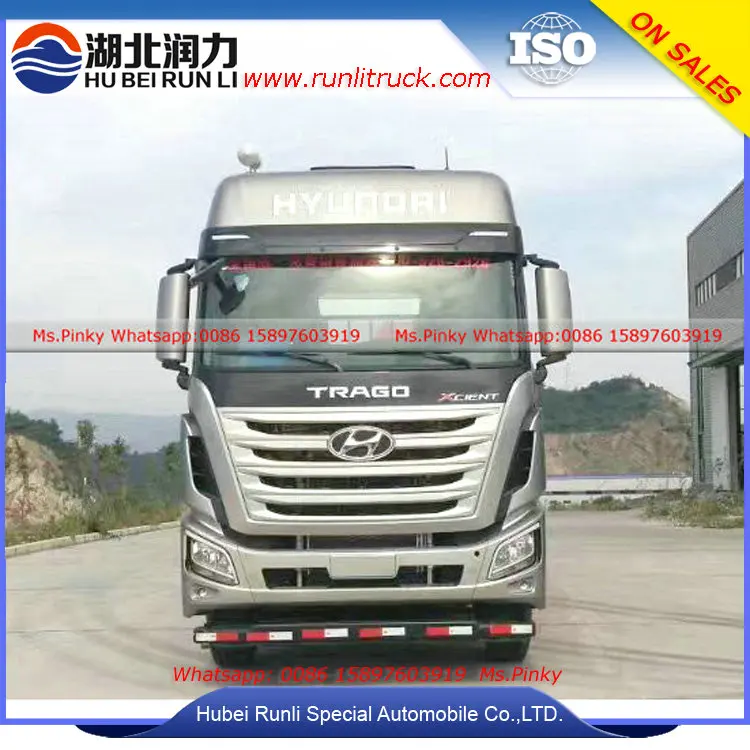

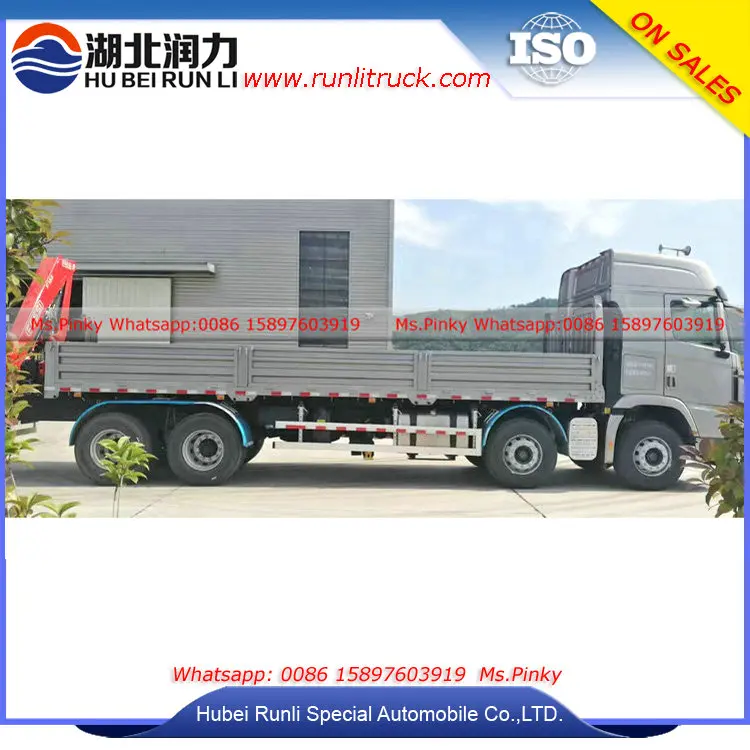

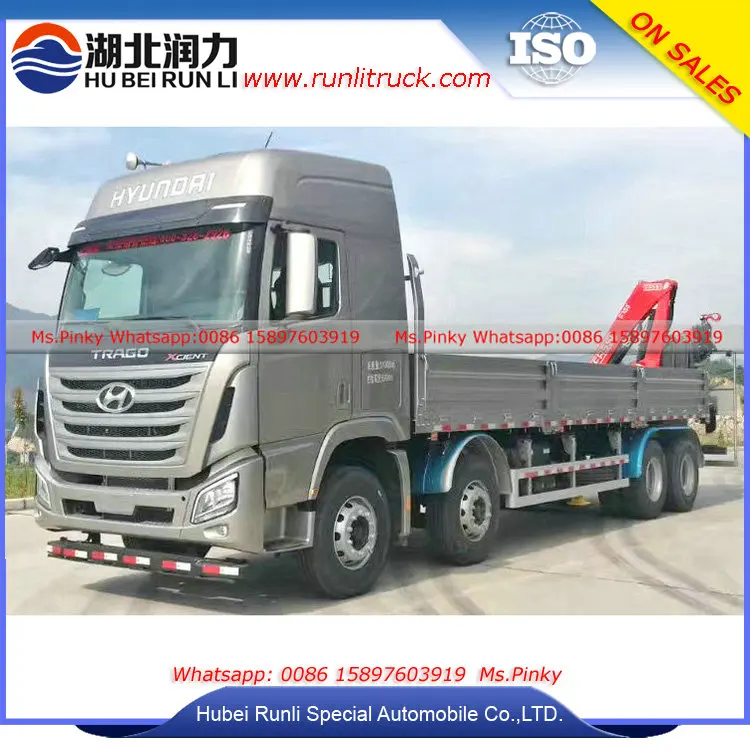

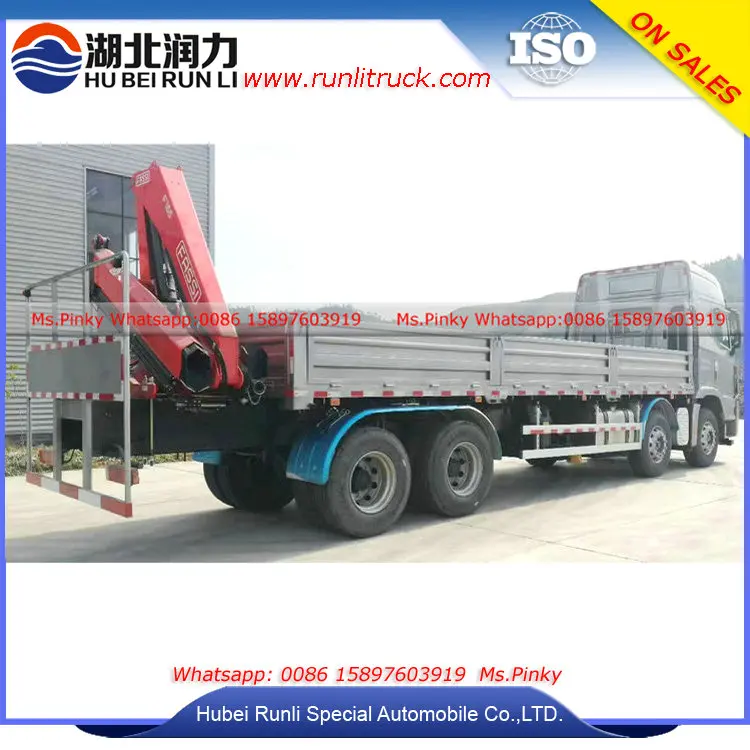

Detail Photos for 12Wheels Hyundai Trago Truck Mounted Crane,12Tons Crane Lorry Trucks :

Paymen Terms

 T/T or Letter of Credit

Loading Port: Shanghai or other port in China
MOQ: 1 SET
Payment: T/T, or LC at Sight
30% down payment, 70% balance paid before shipment,all by T/T or by LC
Produce time: 17 days upon receipt of deposit from buyer
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc all post to buyer

Beneficiary Name: HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD
Beneficiary bank: China Construction Bank Corporation
Swift Code: PCBCCNBJ
Account No.: 42014810500220502473



BENEFICIARY:

HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD.

ADD: No.77, Century Ave., Suizhou City, Hubei

BANK OF BENEFICIARY: BANK OF CHINA,HUBEI BRANCH,SUIZHOU SUBBRANCH

ADDRESS OF BANK: NO.69 LIESHAN ROAD,SUIZHOU,HUBEI,CHINA

ACCOUNT NO: 2031 0608 0920 01



SWIFT NO.: BKCHCNBJ600



Company Information

Hubei Runli Special Automobile Co., Ltd. is located in Suizhou City, which is China special automobile industry city. Our company covers an area of more than 166,000 square meters. We focus on the production of special automobile with export rights authorized by the Ministry of Information Industry and Ministry of Commerce. Our company is licensed as the first tanker pressure manufacturer by AQSIQ and is the only private enterprise which gets military quality system certification. Our company is also the "100 key Enterprises in Hubei Province" and "Hubei Province Two Safety Standards Enterprise".

Hubei Runli Special Automobile Co., Ltd. is a special automobile corporation which integrates research, manufacture, and service in one. Our company has 300 types of special vehicles in more than ten series including tank trucks, fire trucks, mobile machinery shops, sprinklers, semi-trailers, pressure vessels, and more.

Our Cleaning Truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, JAC, JMC,KAMA,SHACMAN, etc.



Our Client:

Our company's products have been exported to different countries and regions, including Central America: the Republic of Costa Rica, Panama Republic, Trinidad and DOPA Republic.

South America: the Republic of Columbia, the Republic of Venezuela, the Republic of Ecuador, Peru, the Republic of Bolivia, Chile, the Republic of Paraguay.



Africa: Ethiopia, Angola, Botswana, Burundi, Equatorial Guinea, Togo, Gambia, Republic of the Congo, Djibouti, Guinea, Ghana, Gabon, Zimbabwe, Cameroon, Equatorial Guinea, Kenya and Liberia, Rwanda,Madagascar, Mali, Mozambique, Namibia, Nigeria, Sierra Leone, Somalia, Tanzania, Uganda and Zambia.



Asia: the United Arab Emirates, Philippines, Cambodia, Qatar, Kyrgyzstan, Mongolia, old tart, Turkmenistan, Kazakhstan, Tajikistan, Georgia, Uzbekistan, Afghanistan, Vietnam, Myanmar, Bangladesh. Papua: Oceania New Guinea, Fiji, Kiribati, Nauru, etc..





Factory Workshop

we have professional working equipment and rich workers at Hubei Runli Company factory!



Contact Information


More specs , photos, price, delivery time and other need,



please contact with Ms Pinky. Hotline: 0086 15897603919



Welcome to visit our company! suizhou city, Hubei Province.

you may contact with me by whatsapp, wechat, mail, telepone as the following information:
