Quick Details

  • Transmission Type: Manual
  • Condition: New
  • Emission Standard: Euro 3
  • Fuel Type: Diesel
  • Tank Volume: 18000L to 12000L
  • Dimension (L x W x H): 8150*2495*3050
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Runli Brand Sewage Suction Truck
  • Model Number: Dongfeng Sewage Suction Truck
  • Horsepower: 160HP -190HP
  • Gross Vehicle Weight: 17430
  • Vacuum Trucks: with water spraying function and water monitor
  • Contact: Ms.Pinky 0086 15897603919
  • Offical website: www.runlitruck.com
  • Chassis Optional: Dongfeng Sinotruck Howo, Schaman,I,SUZU,BEIBEN FAW UD NISSAN

Packaging & Delivery

Packaging Details naked package , waxed before delivery, Shipping by RORO or Bulk shipment, please directly contact with Ms Pinky. Hotline:0086 15897603919
Delivery Time 15days after receipt the down payment

 10000L Sewage Suction Truck Dongfeng Vacuum Truck For Sales Call Ms.Pinky 0086 15897603919





We can Provide you the following Sewage Suction Truck:



SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC I,SUZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl

1.Factory direct sale

2.Specialized in Trucks 10 years

3.a competitive price.

4.with CCC,ISO9001,SGS,ASME

5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,I,SUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .

6.Engine min horse power is 120HP~ 240HP~380HP

7.Loading Capacity: From 2Tons to 60Tons



More information, please contact with me. www.runlitruck.com



0086 15897603919 Ms. Pinky

Specification



The Specification of Dongfeng Sewage Suction Truck:

horizontally mounted tank with domed ends, internal welded surge baffles, full tank length sub frame with side walks, Access Ladder top inspection cover, Sub frame integral with tank and dismountable from Chassis. Lockable quick release locking mechanism on inspection cover. scope of application: work in oil field, mine, for firefighting and forest.
Commodity Dongfeng EQ1141KJ 190HP 12000Litres sewage suction truck
Chassis EQ1141KJ
Cubage (T)10000Litres to 12000Litres
Vehicle Overall dimension(length/width/height)mm8150*2495*3050
G V W(kg)17430
Payload (kg)10000
Kerb mass(kg)7205
Approach/Departure Angle(°)25/15.
Front/Rear Suspension (mm)1205/2445.
Fuel TypeDiesel
Fuel consumption(L/100km)22
Top speed 90
Engine Model B190 33
Exhaust/Power(kw)5900cc/140kw
190HP
Manufacturer DONGFENG Cummins
Type 6-in-line water cool Turbo Charge engine
Chassis Drive type4x2
Wheelbase (mm)4,500
Tread(front/rear)mm1940/1860.
Front Bridge5T FRONT AXLE
Rear Bridge10T rear axle
TransmissionDouble spoke wheel, with power steering
Gear box6Forwards, mechanical transmission
Clutch Uniwafer, dry screw spring clutch
Brake systemAir brake
Cab WITH ONE BED
Number of spring axles(front/rear)8/10+8
Tire specification10.00-20 OR RADIAL 10.00R20
Air conditionwith
suction systemsuction pumpSingle Stage Rotary Oil Seal Vacuum Pump
special parameter Vertical suction heihgt More than 8
working pressure 8500Pa
rotation speed 500
suction speed 98L/S
power 5.5kw
inlet diatmeter 50mm
filling time less than 5s
discharge time Less Than 4s

Dongfeng Sewagw Scution Truck, it is with water truck function, with water monitor.

Characteristic





Characteristic of Dongfeng Sewage Suction Truck:

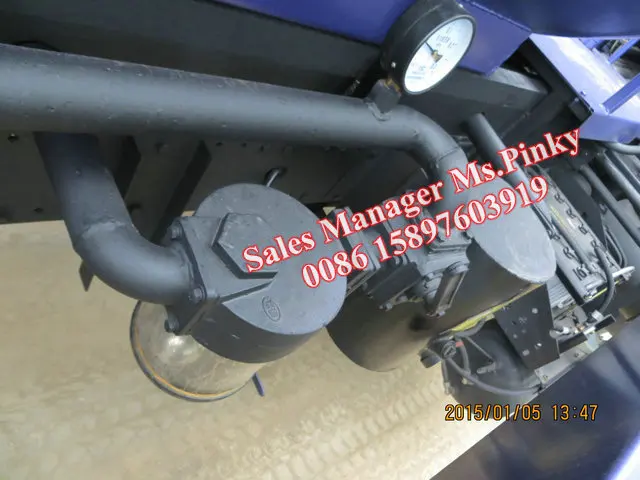

Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed ≥800r/m, max suction lift ≥6m, vacuum 500mmHg, clockwise)
Equipped withpower take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment
Time for full suction<5min



Equipment is designed to collect, by suction, and transport the sewage and sludge. Cesspit emptier consists of a subframe connected to the vehicle's chassis. A cylindirical tank, a hydraulically openning full diameter tailgate and the vacuum system powered by the PTO mounted to the gearbox of the vehicle. All the functions and the load distribution of the equipment are properly arranged to the technical specifications of the chassis on which it is mounted.

Detailed Images

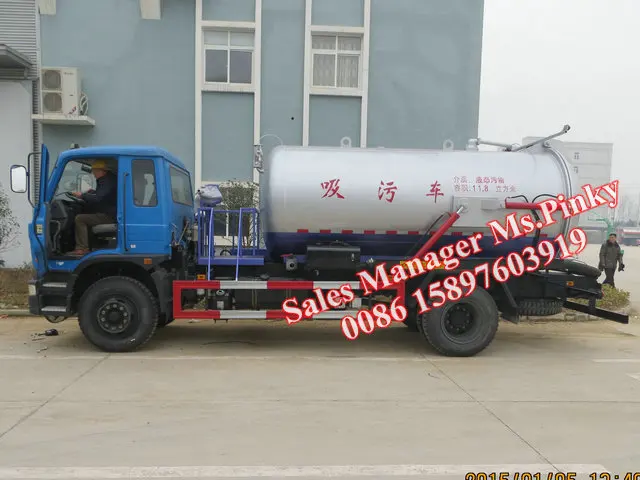

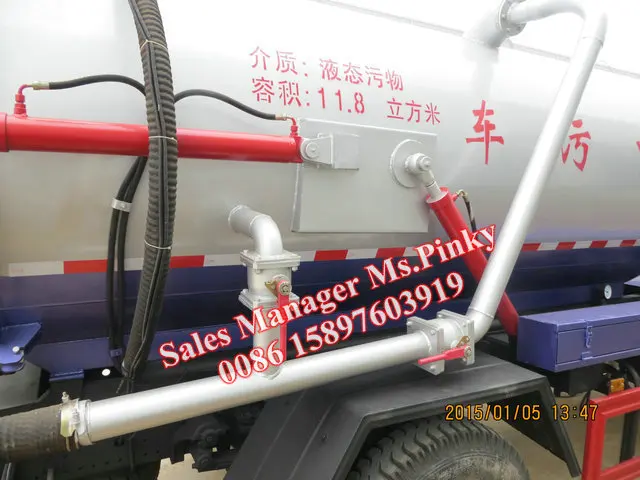

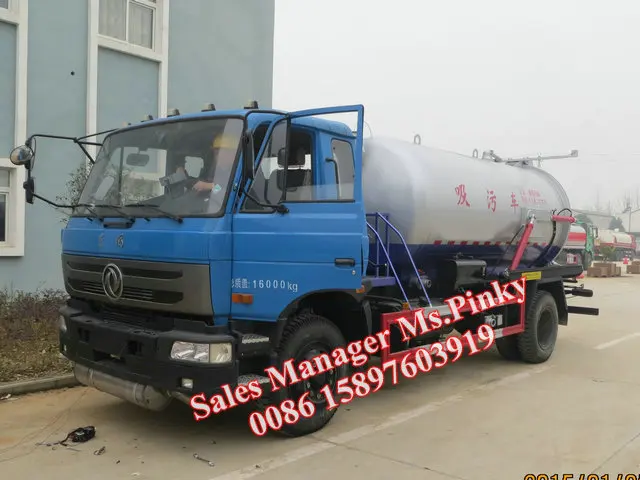

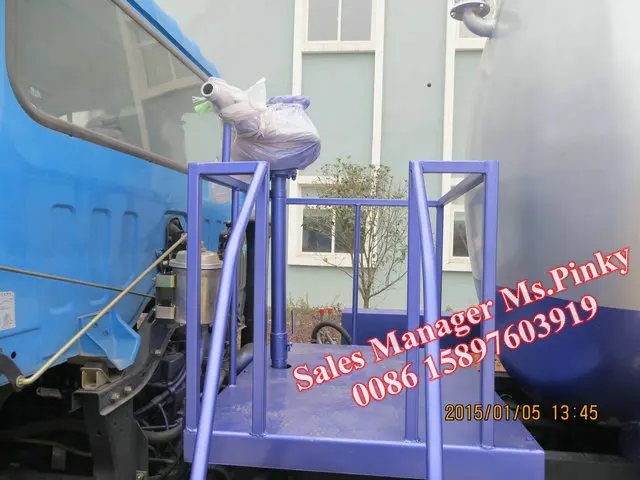

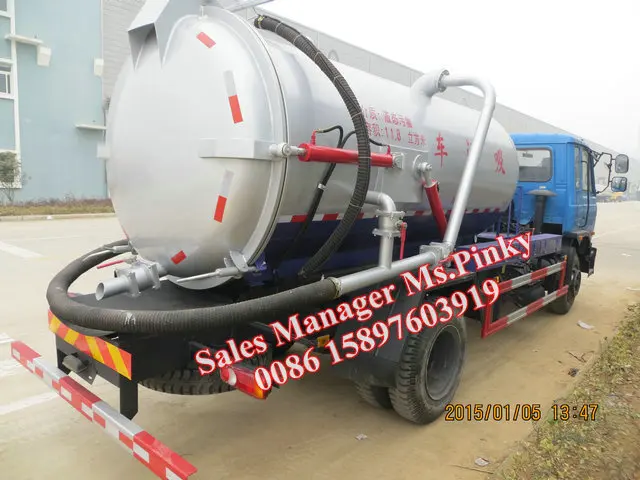

Detail Photos of Dongfeng Sewage Suction Trucck Vacuum Truck:

Advantages





our producing equipment and advantage for Septic Tank Truck:











Related Products

More Suction Sewage Tanker Truck at our factory for you Choice:



Paymen Terms





Our Payment terms and delivery time:

1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment,all by T/T or by 100% LC at sight. Min order: 1 units

Delivery time: 15-20days after get the deposit or LC

Packing: nacked package, waxed before delivery by sea.

Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc





Our Bank Information:



 BENEFICIARY: HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD
Address: NO.77, century ave, suizhou city, hubei province
BANK OF BENEFICIARY: BANK OF CHINA, HUBEI BRANCH, SUIZHOU SUB BRANCH
ADDRESS OF BANK: NO.69 LIESHAN ROAD, SUIZHOU, HUBEI, CHINA
ACCOUNT NO.: 20310608092001
SWIFT NO.: BKCHCNBJ600

Company Information





Our Company Main Products and offical Website: www.runlitruck.com

The main products are

1. Water truck

2. Fuel tanker truck, Oil Truck, Tanker Truck

3.Fire engine truck

4.Truck mounted with crane

5.Dump truck,tipper,heavy duty truck

6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker

6. Bulk cement truck

7. Concrete mixer truck, mixer truck, cement mixer truck

8. Garbage truck, Self-loading garbage truck,garbage compactor truck,sealed garbage truck

9.Fecal suction truck,sewage suction truck

10. High altitude working truck

11. Chemical liquid truck

12. Van truck,insulated truck,refrigeration truck

13. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc more than 300 types in total.



Our company covers an area of 155,000square metres, factory area of 25000m3, manufacturing capability 5000 sets every year, include sales branch, producing manage centre and more than thirty branches in China.



Our company has D grade spressure vessel manufacturing ability, and war industry manufacturing ability and got the certification in 2005, is the producing basic of Chinese Sinopec.

 our products not only gains the good reputations in domestic, but also be sold to oversea market, such as Qatar, Algeria, Bolivia, Burundi, Cameroon, Nigeria, Congo, East Timor, Ghana, Libya, Angola, O'zbekiston, South Africa, Afghanistan, vietnam, kazakhtan, Thailand, Mongolia, etc.



Our client:

Contact Information





Our company contact infomration and offical website: www.runlitruck.com

More specs , photos, price, delivery time and other need,



please contact with Ms Pinky. Hotline: 0086 15897603919


Welcome to visit our company! suizhou city, Hubei Province.
